Spray Truck App
An in-cab Windows app that connects to your spray controller, GPS and weather station. It records every pass with time, operator, herbicide, target weeds, rates and weather, shows coverage from every truck, and disables spraying near no-spray zones.

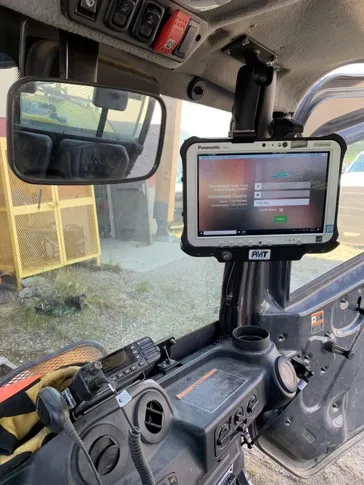

The MRF Spray Truck App turns each spray truck into a mapping device. It runs on a rugged Windows tablet in the cab and connects to the truck’s spray controller, a dedicated GPS receiver and a weather station. The area treated is recorded as the truck moves and sprays, coverage is shared across the fleet, and sensitive areas are protected automatically. You get an accurate, defensible record of the program.
The app works with Raven serial controllers such as the SCS 450 and SCS 4400. Starting in 2026, it also supports the Raven VIPER 4+ through a CANbus connection.
Hardware support
- Weather station integration (temperature, wind speed and direction, humidity).
- Dedicated GPS receivers for accurate spray mapping.
- Spray controller integration.

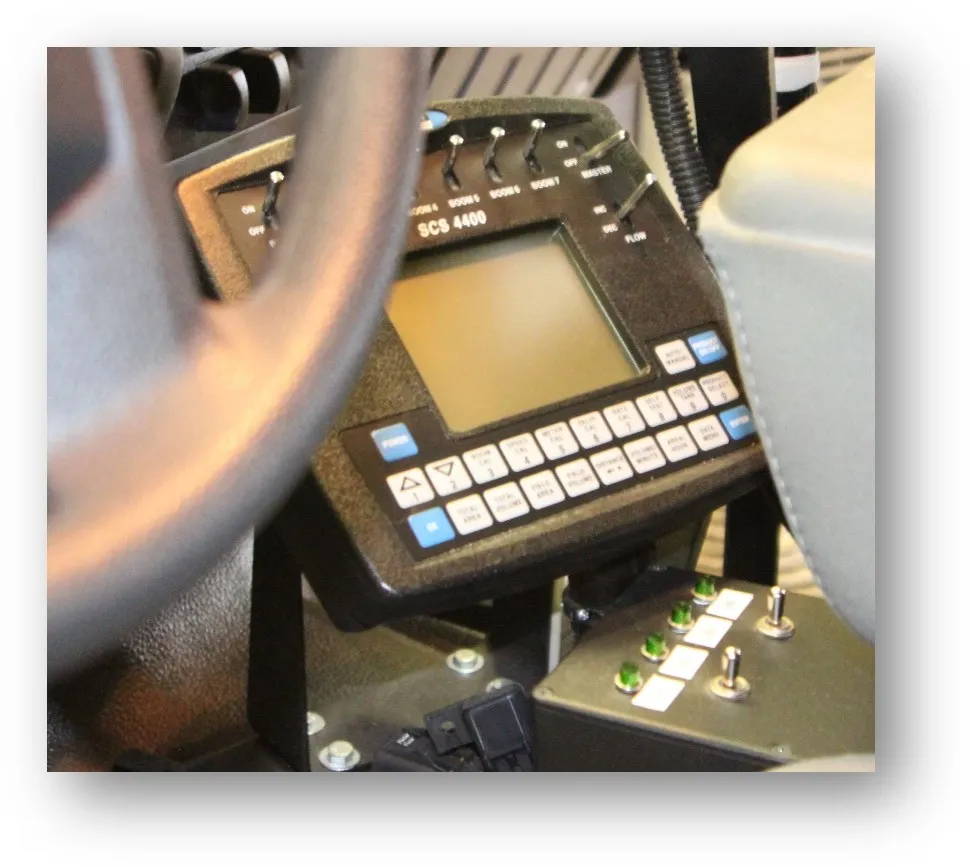

- Raven serial controllers, such as the Raven SCS 450 and SCS 4400.

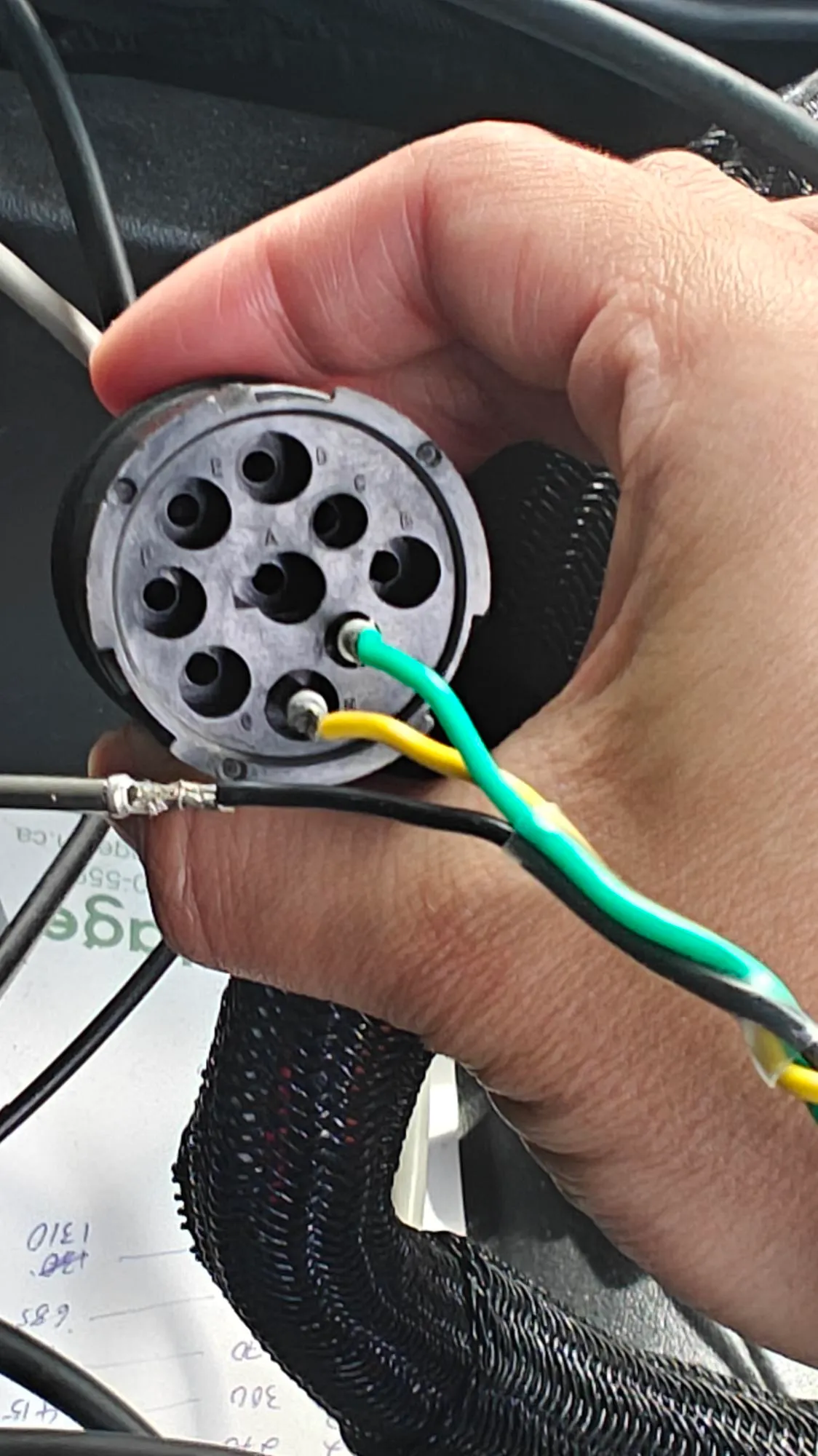

- Raven VIPER 4+ via CANbus connector (starting in 2026).
Above: The in-cab app, with sprayed areas, zones, and live GPS and weather readings.
What you can do with Spray Truck App
Complete spray records
Operator, start and end time, target weeds, herbicide, water and herbicide rates, and GPS location captured for every application.
Weather on every record
Temperature, wind speed and direction, and humidity from the truck's weather station are stamped onto each spray record.
Works with your spray controller
Connects to Raven serial controllers such as the SCS 450 and SCS 4400 today, and to the Raven VIPER 4+ over CANbus starting in 2026.
No-spray zone shut-off
Spraying is automatically disabled when approaching no-spray zones.
Shared coverage
Each truck sees the area sprayed by all trucks, avoiding gaps and overlaps.
Presets
Set spray volume, chemical type, boom length and more before heading out.
Managed in MRF Web Map

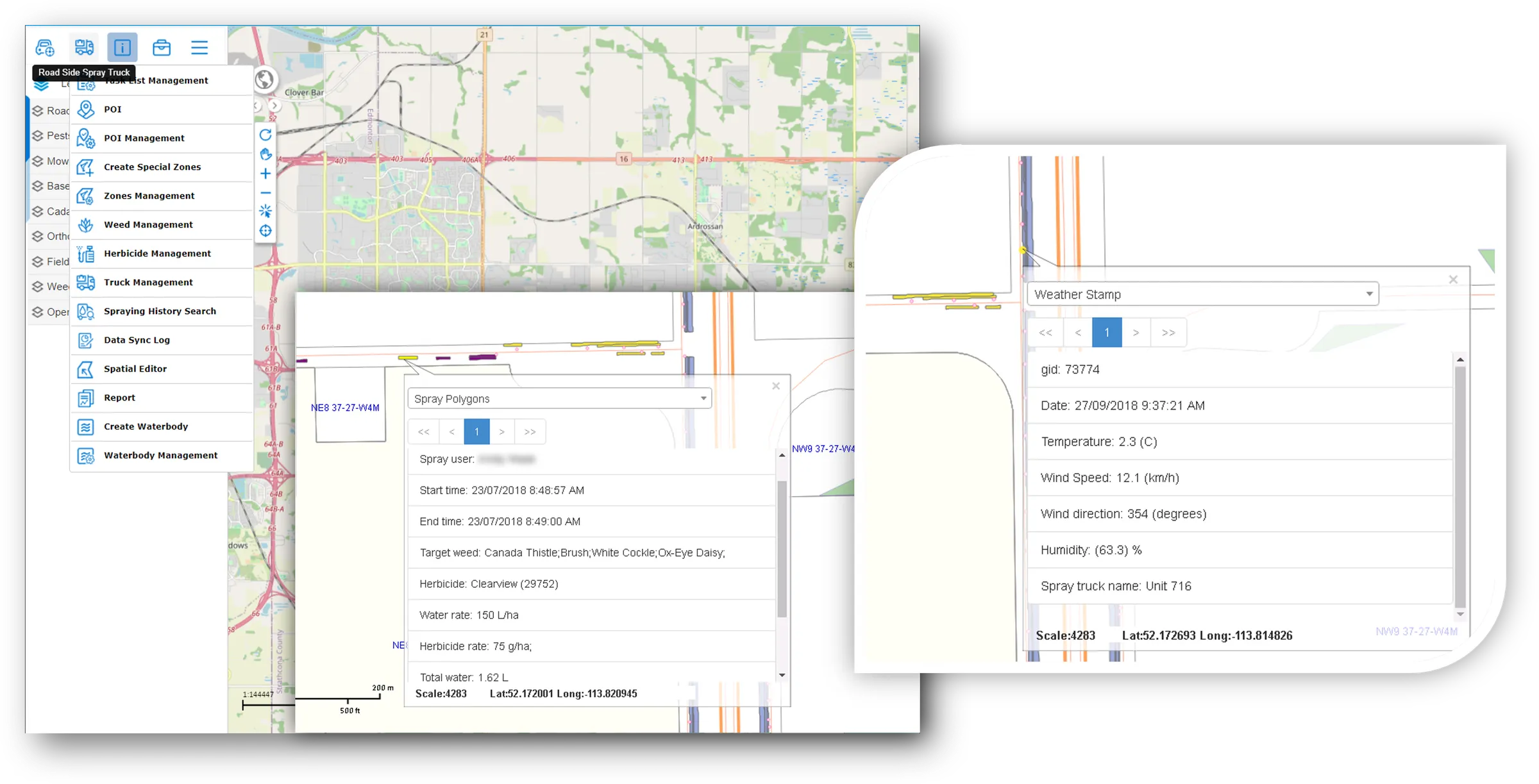

Task lists, points of interest, special zones and waterbodies, weeds, herbicides, trucks, spraying history search, data sync log and reports.
